Blast Cleaning Nozzles and Couplings

NHP Nylon Nozzle Holders

NHP Nylon Nozzle Holders Graphic

The Clemco fiber-reinforced nylon nozzle holder attaches to the end of a blast hose and holds a contractor-thread blast nozzle.

Advantages:

  • Fiber-reinforced nylon material springs back from most impacts that would dent or deform metal nozzle holders.
  • Lighter weight than metal nozzle holders.
  • Precision dimensions.
  • Large thread makes changing nozzle easy

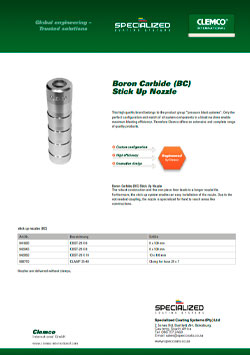

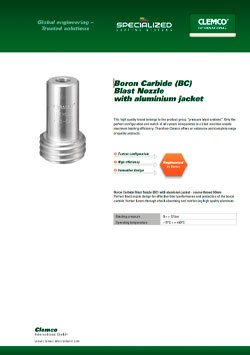

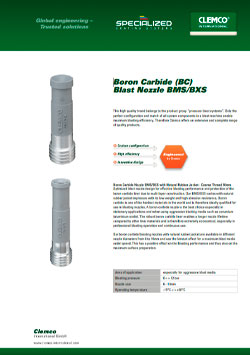

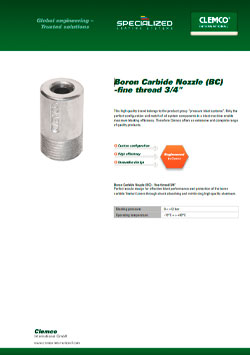

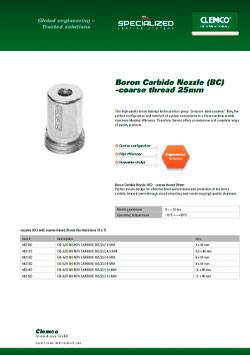

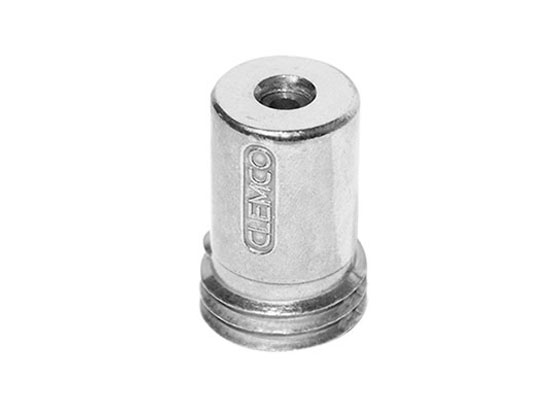

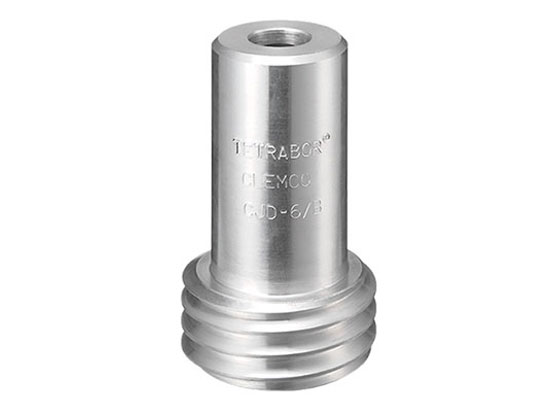

Boron Carbide Linded Metal Jacketed BSD Series

Boron Carbide Lined Metal Jacketed Graphic

A blast nozzle accelerates the air and abrasive as the mixture exits the end of the hose. The taper and length of the nozzle's inlet and outlet determine the pattern and velocity of the abrasive exiting the nozzle.

Advantages:

  • Boron Carbide liner material is the most abrasive-resistant, durable, and economical liner material.
  • Long-venturi nozzles allow high production blasting at a distance of 18 to 24 inches for hard-to-clean surfaces, and 30 to 36 inches for loose paint and soft surfaces.
  • Expected life with expendable abrasives is approximately 1000 hours.
  • 1-inch entry provides smooth transition and maximum productivity with 1-inch ID blast hose.
Download Datasheet

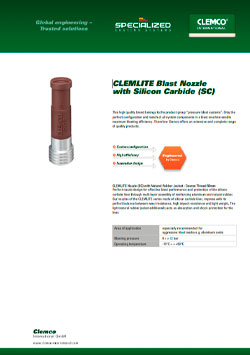

Clemlite® Lined Metal Jacketed Long Venturi

Chemlite Lined Metal Jacketed graphic

Long Venturi: SFD, SMD, SSD, SXD

A blast nozzle accelerates the air and abrasive as the mixture exits the end of the hose. The taper and length of the nozzle's inlet and outlet determine the pattern and velocity of the abrasive exiting the nozzle. The composition of the liner material determines its resistance to wear.

Advantages:

  • Expected life with expendable abrasives is up to 500 hours.
  • Durable metal jacket.
  • Non-binding contractor threads.
  • 42% lighter than tungsten carbide.

Clemlite® Lined Urethane Jacketed Long Venturi

Chemlite Lined Uretahane Jacketed graphic

Long Venturi: SFR, SMR, SSR, SXR

A blast nozzle accelerates the air and abrasive as the mixture exits the end of the hose. The taper and length of the nozzle's inlet and outlet determine the pattern and velocity of the abrasive exiting the nozzle. The composition of the liner material determines its resistance to wear.

Advantages:

  • Expected life with expendable abrasives is up to 500 hours.
  • Durable urethane jacket.
  • Non-binding contractor threads.
  • 42% lighter than tungsten carbide.

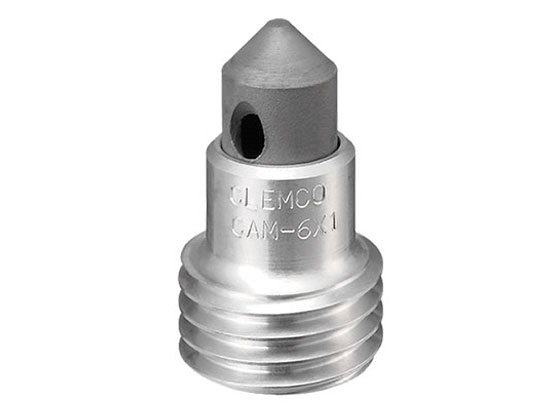

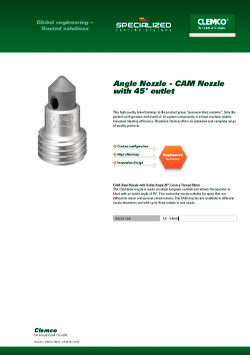

Tungsten Carbide Lined Angle CAM Series

Tungsten Carbide Lined Angle CAM Series graphic

A CAM angle nozzle is designed to blast blind surfaces such as mold cavities or behind beams. Tungsten Carbide lined, the nozzles are available in one or three outlets.

Advantages:

  • Tungsten Carbide is the most rugged and durable liner materal and provides the best value.
  • Has a 45 degree outlet angle and is available in one or three outlets.
  • 1-inch entry provides smooth transition.

Tungsten Carbide Lined Metal Jacketed Long & Short Venturi

Tungsten Carbide Lined Angle CAM Series graphic

Short Venturi: CJD • Long Venturi: CSD, TXD, SDX, CXD

A blast nozzle accelerates the air and abrasive as the mixture exits the end of the hose. The taper and length of the nozzle's inlet and outlet determine the pattern and velocity of the abrasive exiting the nozzle. The composition of the liner material determines its resistance to wear.

Advantages:

  • Rugged and durable aluminum jacket.
  • Tungsten carbide is the most rugged and durable liner material and provides the best value.
  • Expected wear-life when blasting with expendable abrasives is approximately 300 hours.
  • TXD nozzles with large contractor threads eliminate galling or binding of the threads in the holder.
  • CXD nozzles provide smooth transition from 1-1/4-inch blast hose to the 1-1/4-inch entry for users who prefer 1-1/4-inch fine thread nozzles.

Tungsten Carbide Lined Rubber Jacketed Long & Short Venturi

Tungsten Carbide Lined Rubber Jacketed graphic

Short Venturi: TJP, TYP • Long Venturi: TSP, TMP, TXP

A blast nozzle accelerates the air and abrasive as the mixture exits the end of the hose. The taper and length of the nozzle's inlet and outlet determine the pattern and velocity of the abrasive exiting the nozzle. The composition of the liner material determines its resistance to wear.

Advantages:

  • Short-venturi nozzles (TJP, TYP) designed for blasting 12 to 18 inches away from the surface.
  • Long-venturi nozzles (TSP, TMP, TXP) allow high production blasting at a distance of 18 to 24 inches for hardto- clean surfaces, and 30 to 36 inches for loose paint and soft surfaces.
  • Expected life with expendable abrasives is approximately 300 hours.
  • Durable natural rubber jacket.
  • 1-inch entry provides smooth transition and maximum productivity with 1-inch ID blast hose.
  • 1-1/4-inch entry ensures maximum productivity with 1-1/4-inch ID blast hose.

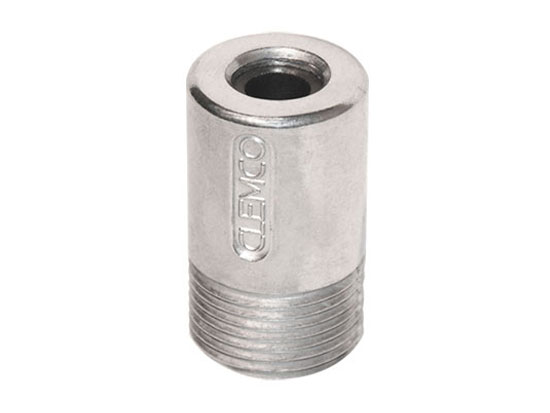

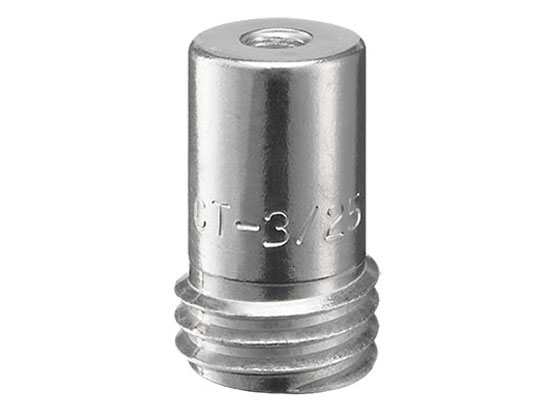

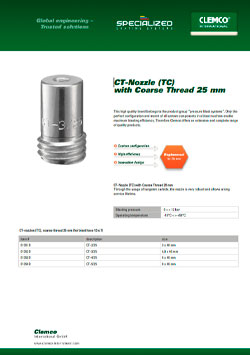

Tungsten Carbide Lined Metal Jacketed Short Straight Barrel CT Series

Tungsten Carbide Lined Metal Jacketed Short Barrel graphic

Short Straight Barrel CT Series

A blast nozzle accelerates the air and abrasive as the mixture exits the end of the hose. The taper and length of the nozzle's inlet and outlet determine the pattern and velocity of the abrasive exiting the nozzle. The composition of the liner material determines its resistance to wear.

Advantages:

  • Tungsten Carbide liner material is the most rugged and durable. It is also the best value in a liner material.
  • Short nozzles (CTs) are designed for blasting 3 to 6 inches away from the surface.
  • Expected life with expendable abrasives is approximately 300 hours.
  • 1/2-inch entry provides smooth transition and maximum.

CFP, Threaded Quick Couplings

Tungsten Carbide Lined Angle CAM Series graphic

Fiber-reinforced 1-1/4-inch threaded nylon quick coupling to fit abrasive blast machine outlet. Comes bonded to schedule 80 pipe.

Advantages:

  • Fiber-reinforced nylon material springs back from most impacts that would dent or deform metal couplings.
  • Built-in lock-springs eliminate need for safety pins.
  • Lighter weight than metal couplings.
  • Injection molded for precise dimensions, ensuring positive fit.

CQP Nylon Quick Couplings

Tungsten Carbide Lined Angle CAM Series graphic

The Clemco fiber-reinforced nylon quick couplings attach to blast hose to facilitate connecting blast hose to blast machine, blast hose to blast hose, and blast hose to quick-coupling nozzle holders.

Advantages:

  • Fiber-reinforced nylon material springs back from most impacts that would dent or deform metal couplings.
  • Built-in lock-springs eliminate need for safety pins.
  • Lighter weight than metal couplings.
  • Injection molded for precise dimensions, ensuring positive fit.
